Mauch 058: PC 2x 15A Battery Sharing Balancer

$55.52

Input: 2x 3.3-18.0V / 2x 15A
Voltage drop input -> output: 10mV/A

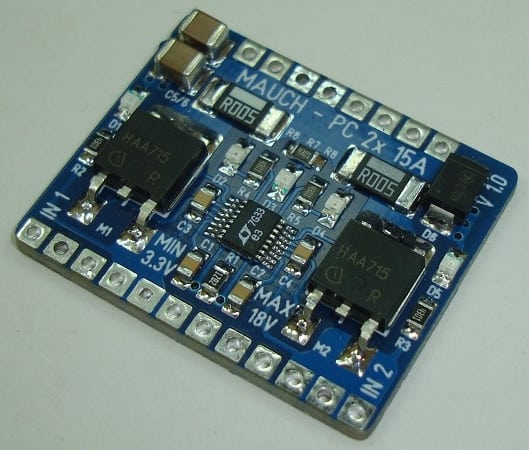

This PC 2x 15A Battery Sharing Balancer is a two-supply current sharing controller with MOSFET ideal diodes. The diodes block reverse and shoot-through currents during start-up and fault conditions. Their forward voltage is adjusted to share the load currents between supplies. Unlike other sharing methods, neither a share bus nor trim pins on the supply are required.

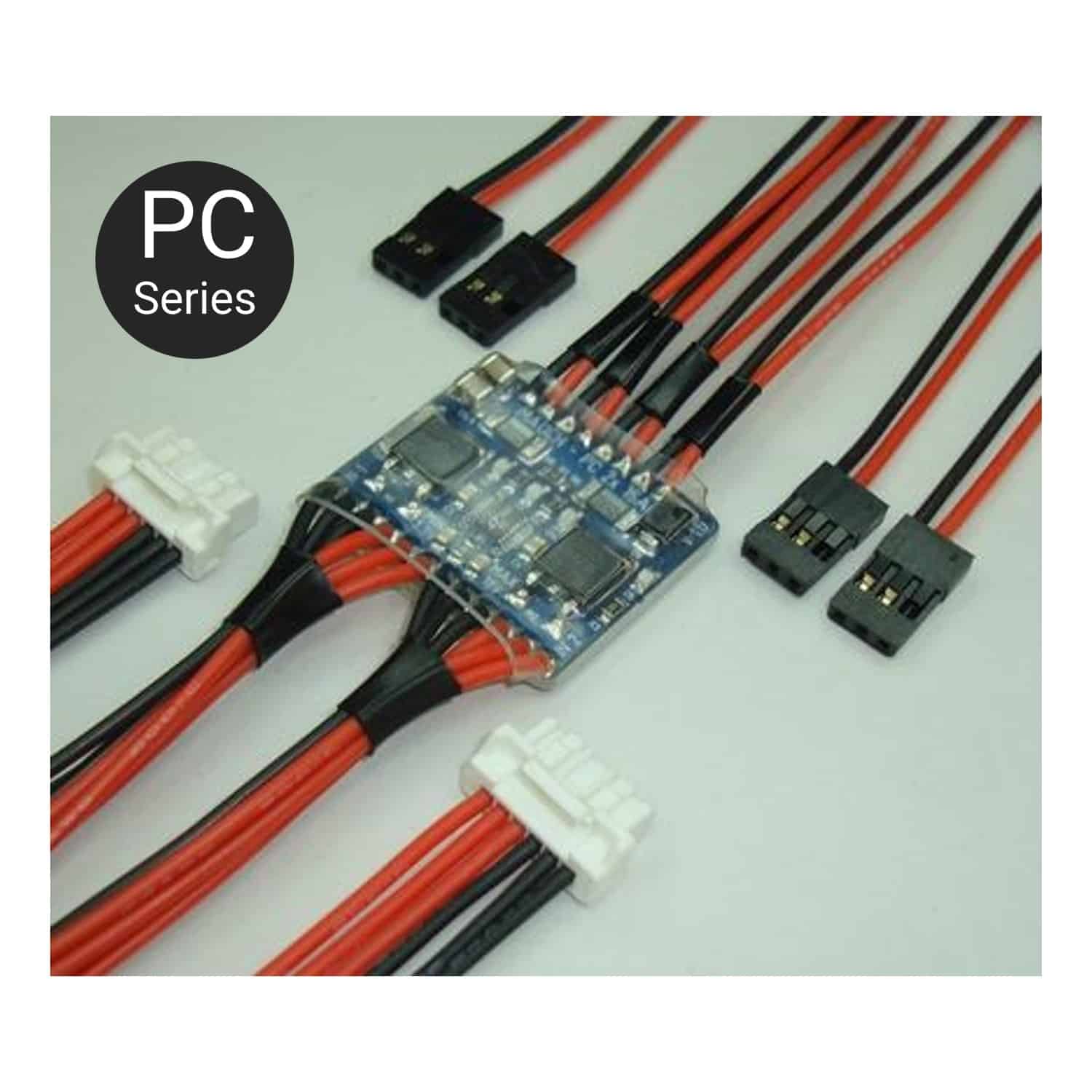

What’s included:

  • 1x PC-2x15A board

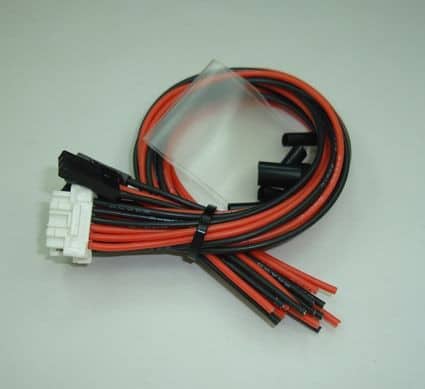

  • 2x input cables with wire leads
    Molex CLIK-Mate 2.0mm 6p / L=200mm (red/black)
  • 4x output cable with wire leads
    JR servo / L = 200mm (red/black
  • 1x transparent heat-shrink tubing to go over the PC-2x15A board

Dimensions and weight:

  • Main PCB: 31 x 25 x 4mm / 4.2g
  • Cable set: 19g
Please review the Mauch warranty for returns and replacements.

In stock

Quantity

Additional information

Weight 1.2 oz
Dimensions 4 × 4 × 0.75 in
