Mauch 054: Power-Cube 4 V3 / 3x 5.3V + 1x 12.0V @10A

$311.09

Input: 4-14S LiPo (60V max)

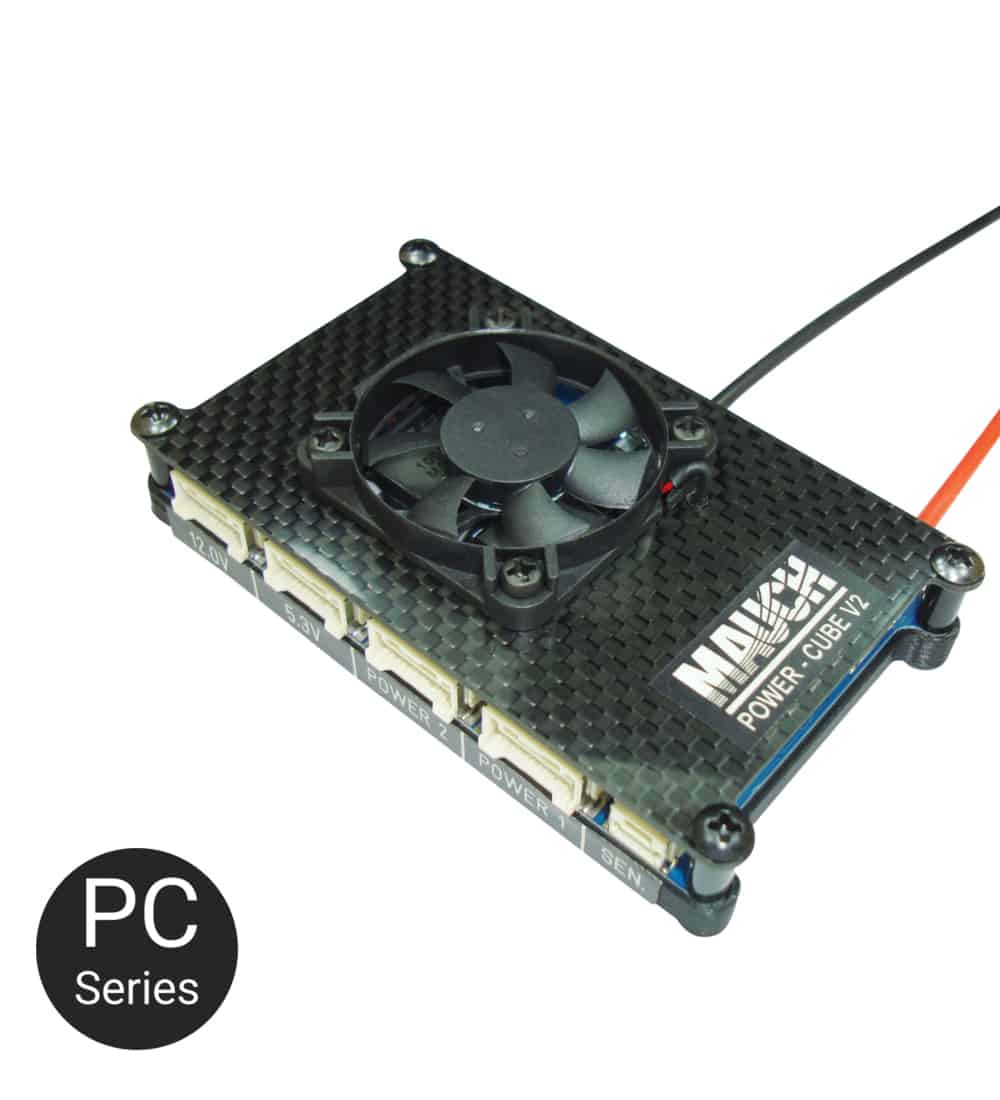

Outputs:

  • POWER1: 5.3V @ 10A
  • POWER2: 5.3V @ 10A
  • “5.3V”: 5.3V @ 10A
  • “12.0V”: 12.0V @ 10A

Click here to customize POWER2, “5.3V” and “12.0V” outputs (can be between 3.3V and 12.0V)
Lead-time for customized parts is approximately 4 weeks

What’s included:

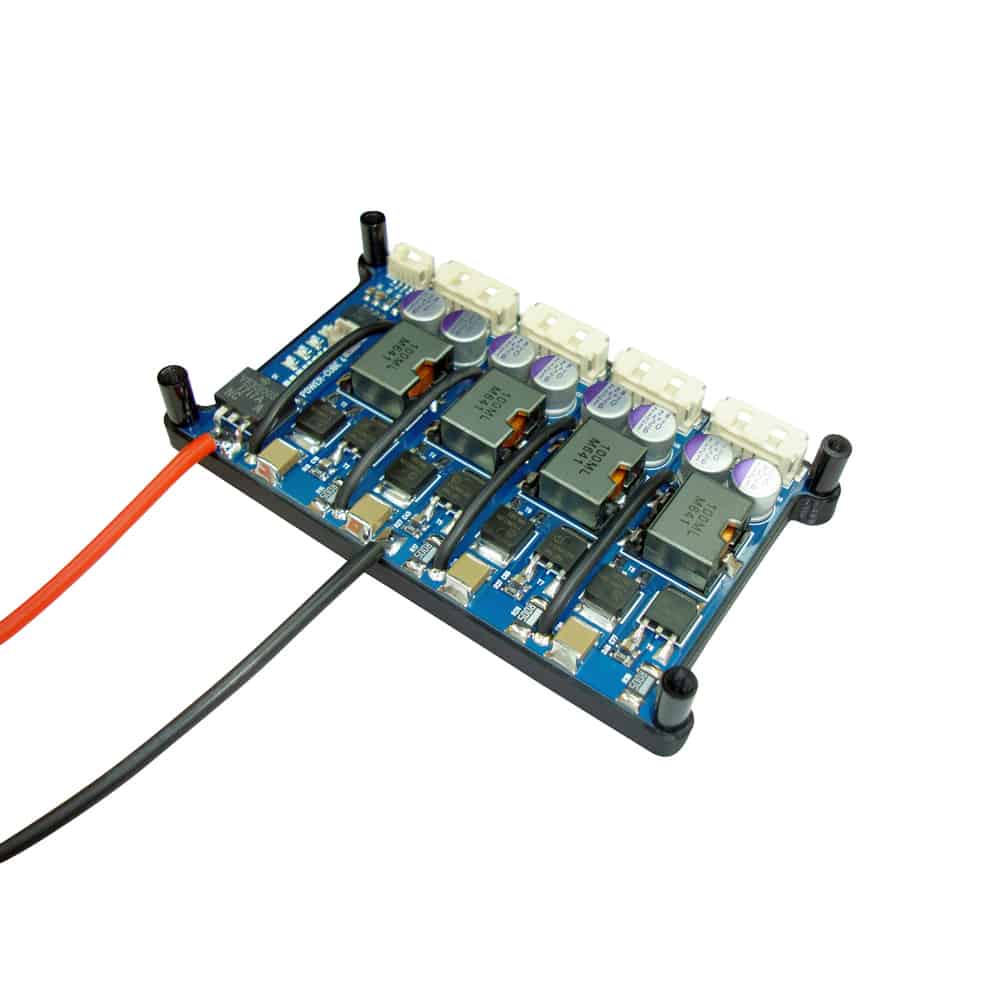

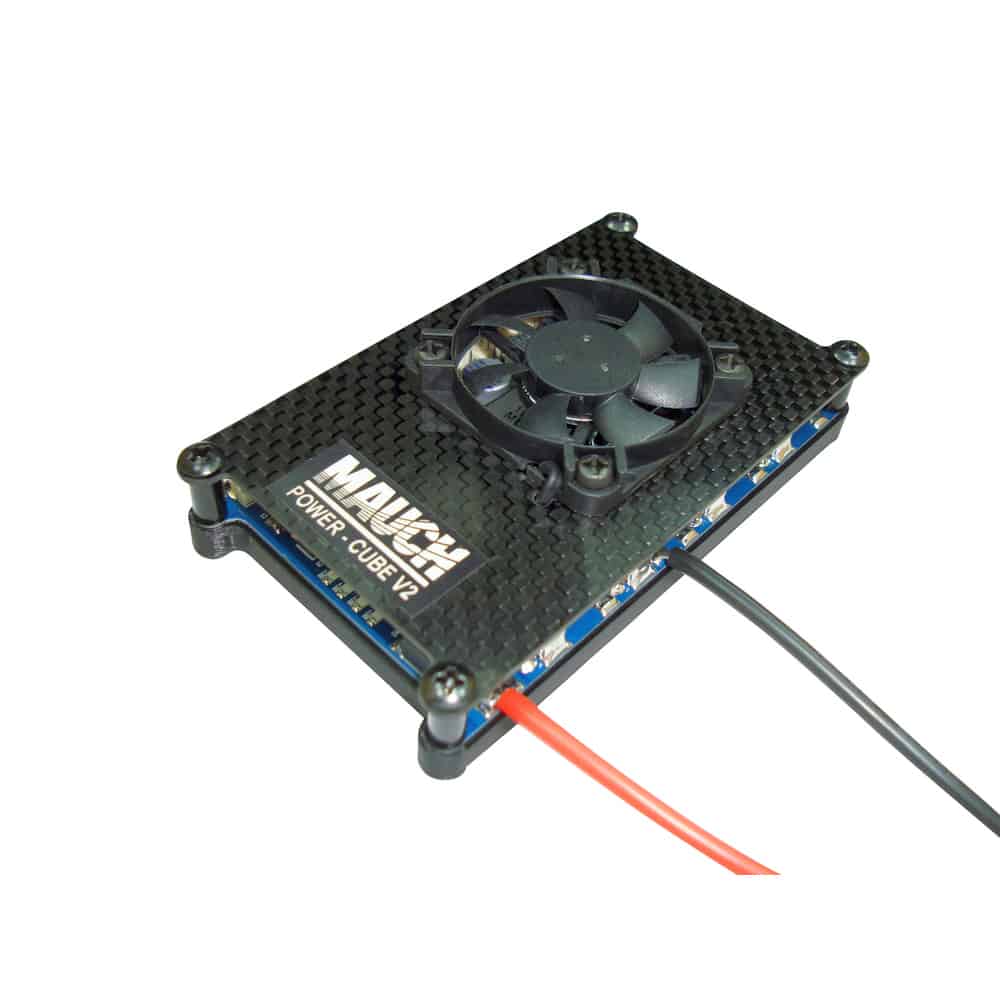

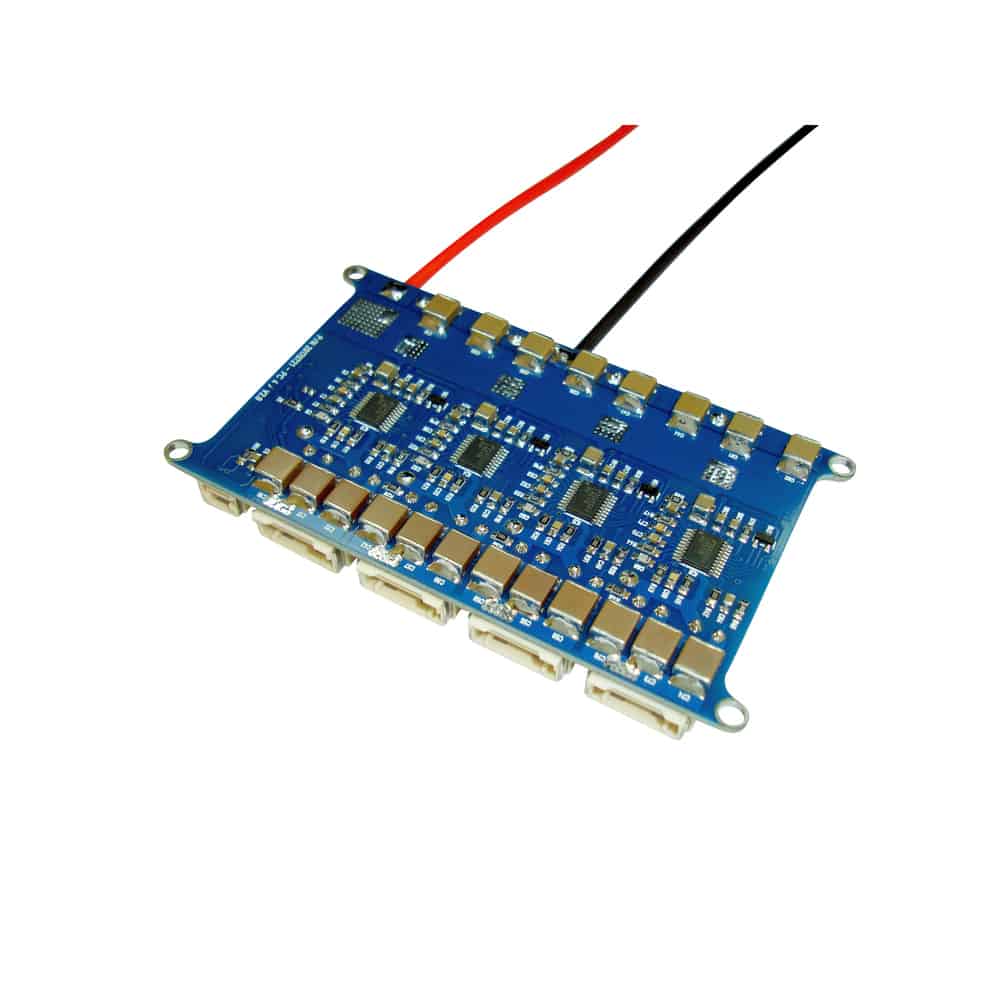

  • 1x Power-Cube 4 V3 with CFK enclosure and fan
  • 1x 040: sensor cable
    Molex CLIK-Mate 1.25mm 4p on both ends / L = 150mm
  • 1x 060: power cable for Pixhawk 2.1
    Molex CLIK-Mate 2.0mm 6p on both ends / L = 200mm
  • 1x 061: backup power cable for Pixhawk 2.1
    Molex CLIK-Mate 2.0mm 6p to Molex CLIK-Mate 2.0mm 6p + 1x JR servo / L = 200mm
  • 1x 062: 5.3V output cable
    Molex CLIK-Mate 2.0mm 6p to 3x JR servo / L = 200mm
  • 1x 063: 12.0V output cable
    Molex CLIK-Mate 2.0mm 6p to 3x JR servo / L = 200mm

Delivery without 059: Power-Cube V3 Switch. Please order separately if required.

Dimensions and weight:

  • 101 x 58 x 24mm / 102g with enclosure and fan
  • Cooling fan size: 40 x 40 x 6mm

Important operating recommendations:

  • Only use high quality anti-spark plugs.
  • Never use a PSU.
  • Don’t use the power supply on high inductive loads, such as DC motors
    (max output to power brushed or brushless DC motors is 5A).
  • Input must be at least 3V higher than output!

Please review the Mauch warranty for returns and replacements.

In stock

Quantity

Additional information

Weight 6 oz
Dimensions 4.75 × 3 × 2 in
