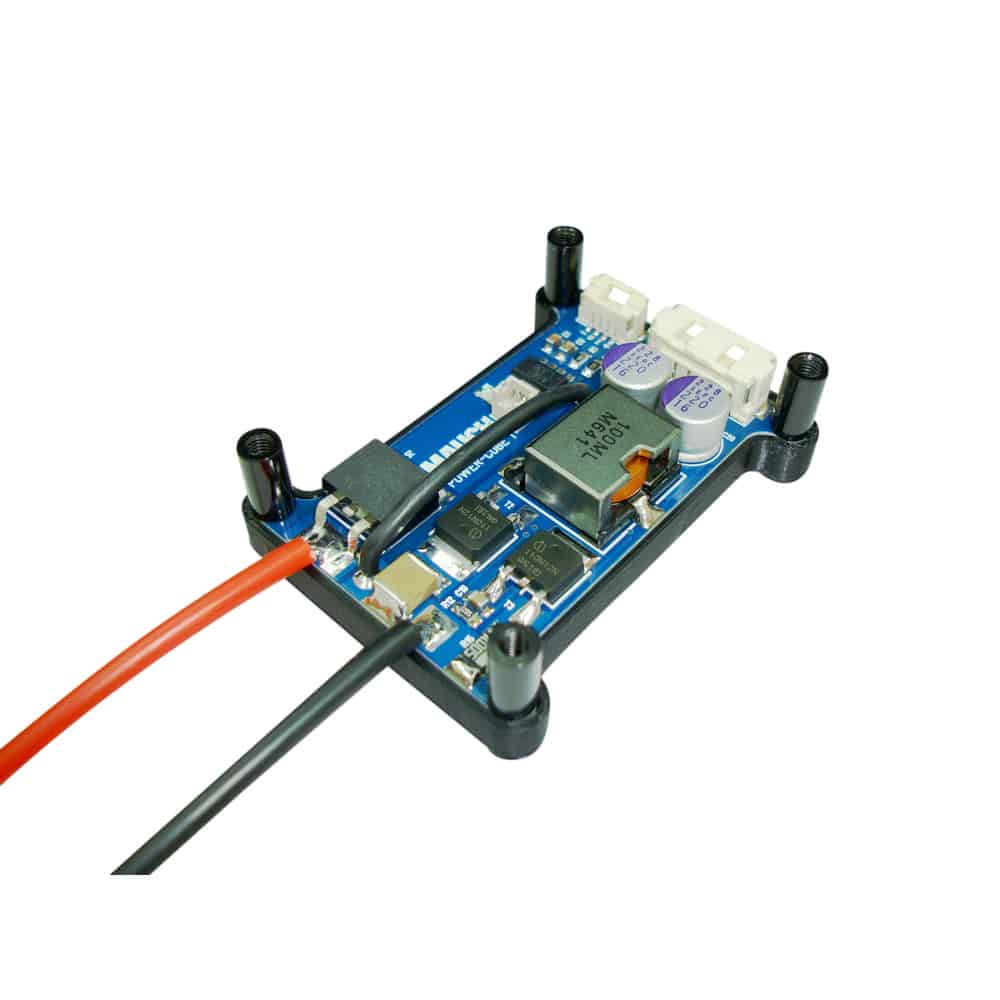

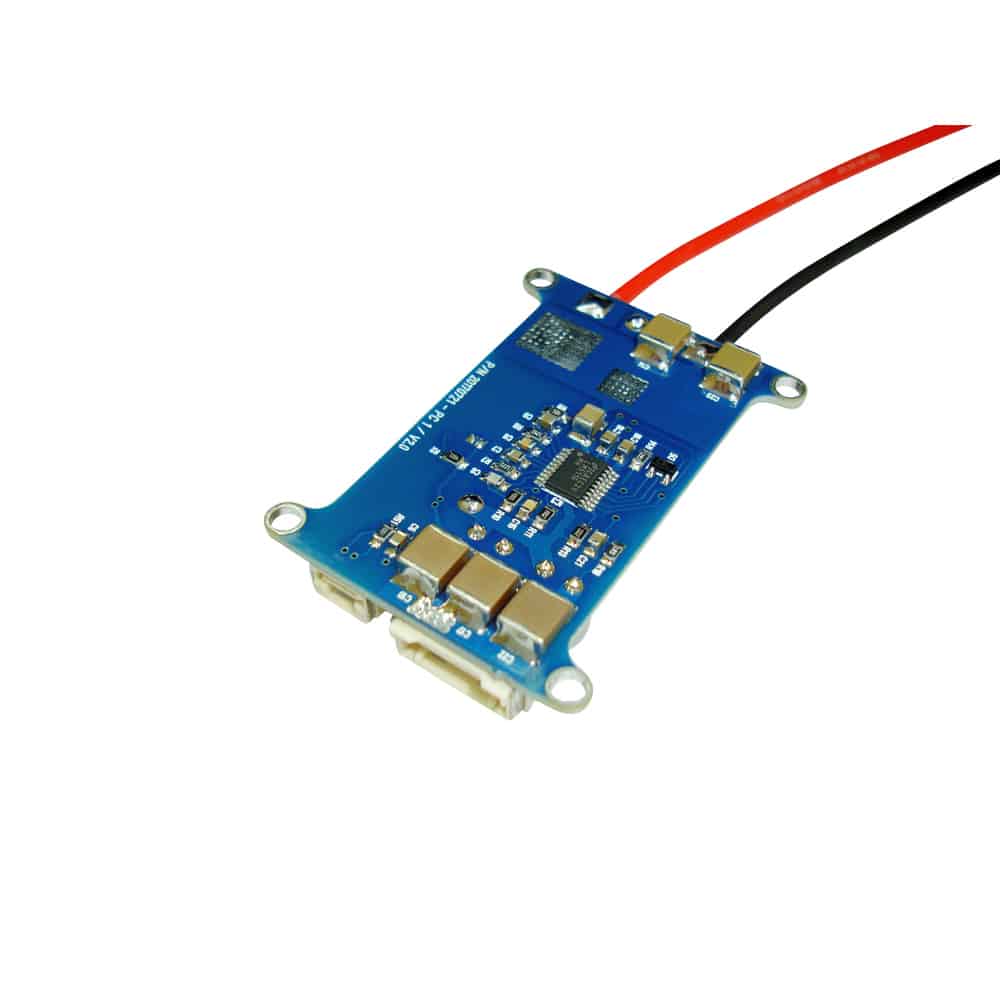

Mauch 051: Power-Cube 1 V3 / 1x 5.3V @ 10A

$131.66

Input: 3-14S LiPo (60V max)
Output: 1x 5.3V @ 10A

What’s included:

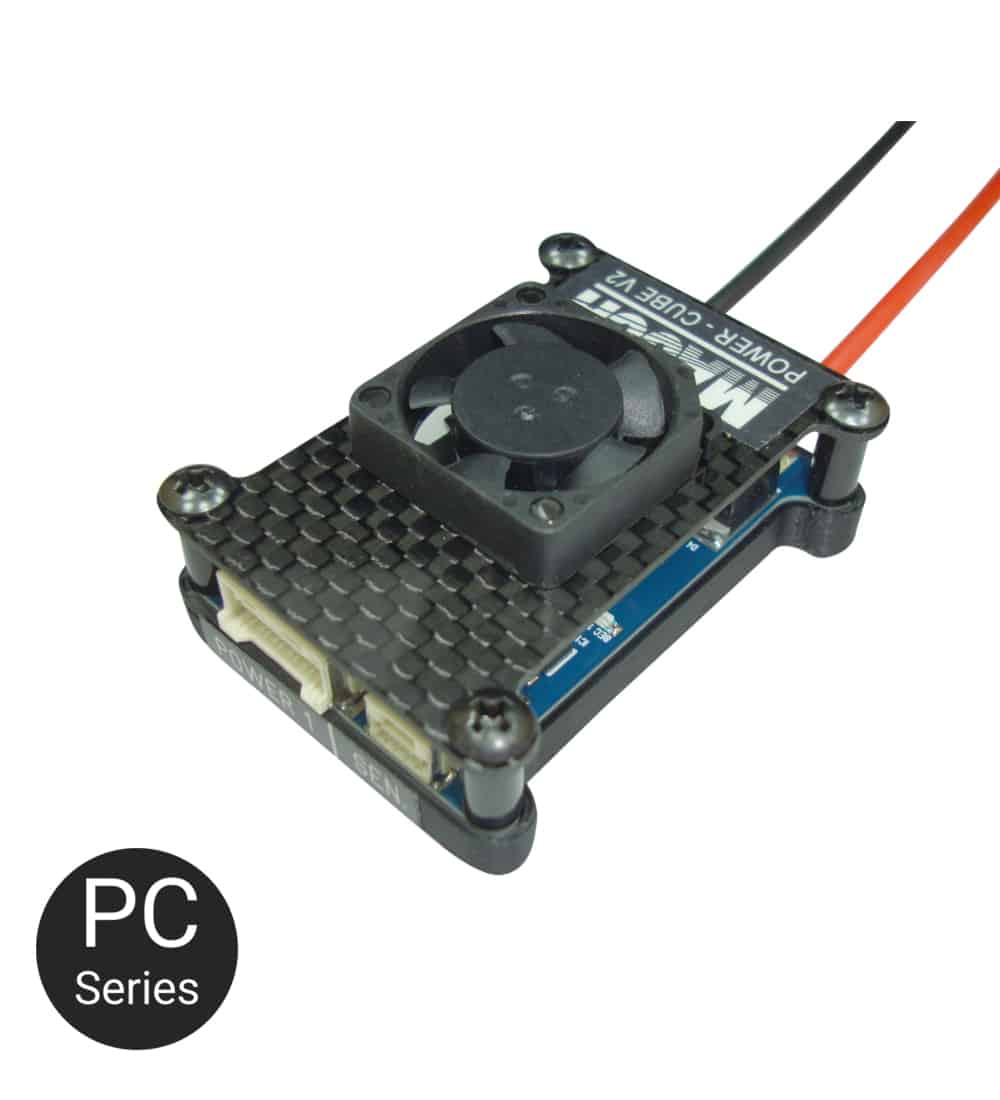

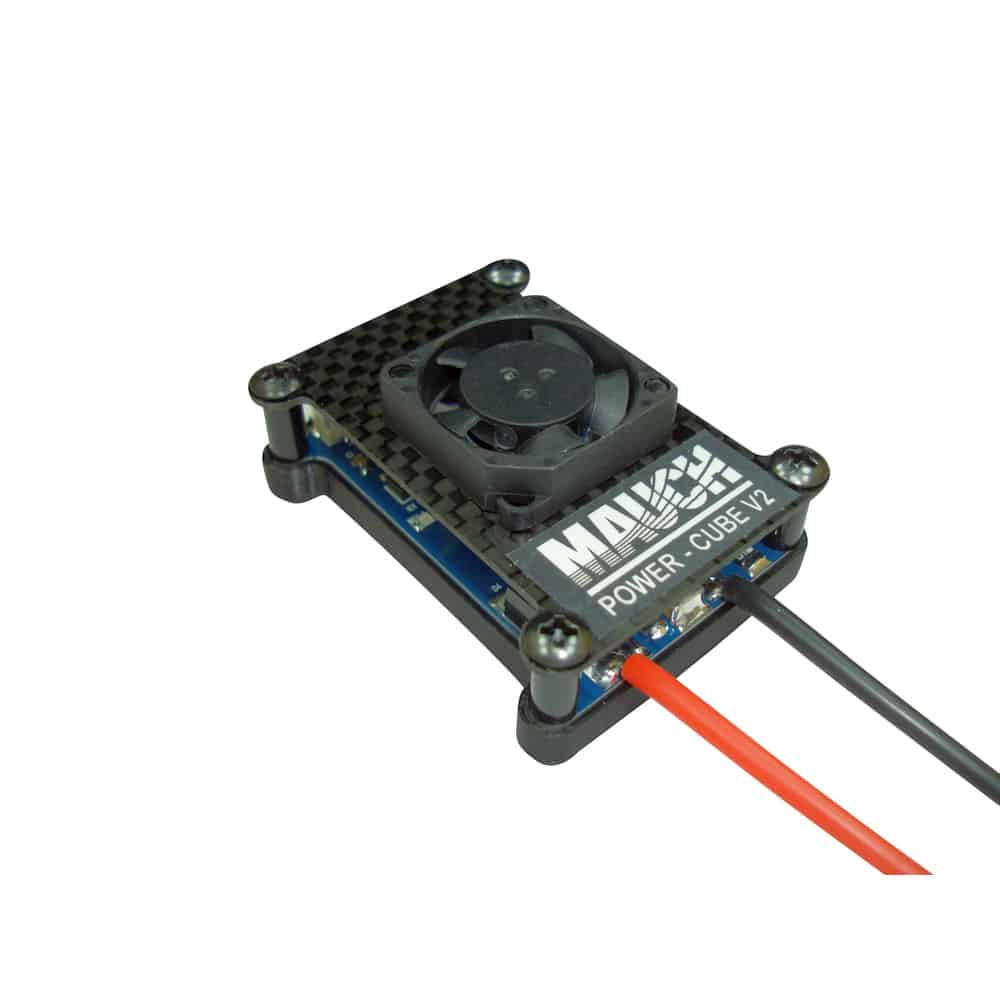

  • 1x Power-Cube 1 V3 with CFK enclosure and fan
  • 1x 040: sensor cable
    Molex CLIK-Mate 4p on both ends / L = 150mm
  • 1x 060: power cable for Pixhawk 2.1
    Molex CLIK-Mate 2.0mm 6p on both ends / L = 200mm

Dimensions and weight:

  • 45 x 58 x 24mm / 49g with enclosure and cooling fan
  • Cooling fan size: 25 x 25 x 6mm

Important operating recommendations:

  • Only use high quality anti-spark plugs.
  • Never use a PSU.
  • Don’t use the power supply on high inductive loads, such as DC motors
    (max output to power brushed or brushless DC motors is 5A).

Please review the Mauch warranty for returns and replacements.

In stock

Quantity

Additional information

Weight 2.4 oz
Dimensions 3.5 × 2.5 × 2 in
