Mauch 051-24: Power-Cube 1 V3 / 1x 12-30V @ 120W

$138.24

Input: 4-14S LiPo (60V max)
Output: 1x 12-30V @ 120W (customize below)
Lead-time for customized parts is approximately 4 weeks.
Orders of custom parts cannot be cancelled, unless production of those parts has not yet started.
Custom parts can be replaced under warranty, but cannot be returned.

What’s included:

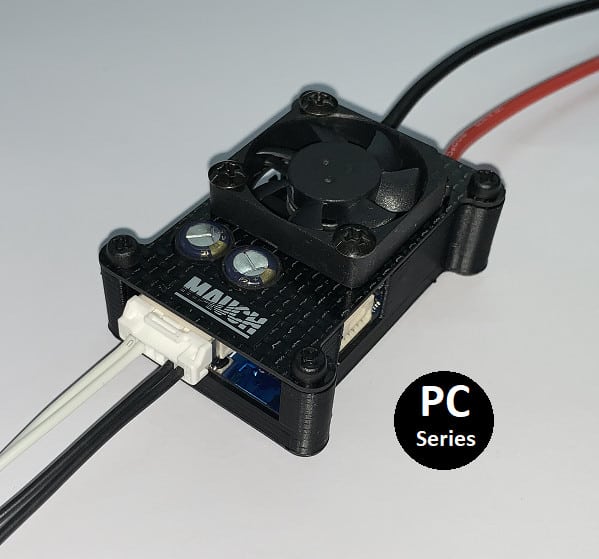

  • 1x Power-Cube 1 V3 with CFK enclosure and fan
  • 1x Output cable:
    Molex CLIK-Mate 2.0mm 6p / 3x white (positive) and 3x black (GND) / L = 200mm

Delivery without 059: Power-Cube V3 Switch. Please order separately if required.

Dimensions and weight:

  • 45 x 58 x 24mm / 49g with enclosure and cooling fan
  • Cooling fan size: 25 x 25 x 6mm

Important operating recommendations:

  • OUTPUT NOT DESIGNED TO POWER A FLIGHT CONTROLLER!
  • Not recommended for high inductive loads, such as DC motors
    (max output to power brushed or brushless DC motors is 5A).
  • Input must be at least 3V higher than output!

Please review the Mauch warranty for returns and replacements.

Available on backorder

The output voltage can be customized between 12V and 30V
(default if voltage is not specified in the dialog box below: 24V)

Quantity

Additional information

Weight 3 oz
Dimensions 3.5 × 2.5 × 2 in
