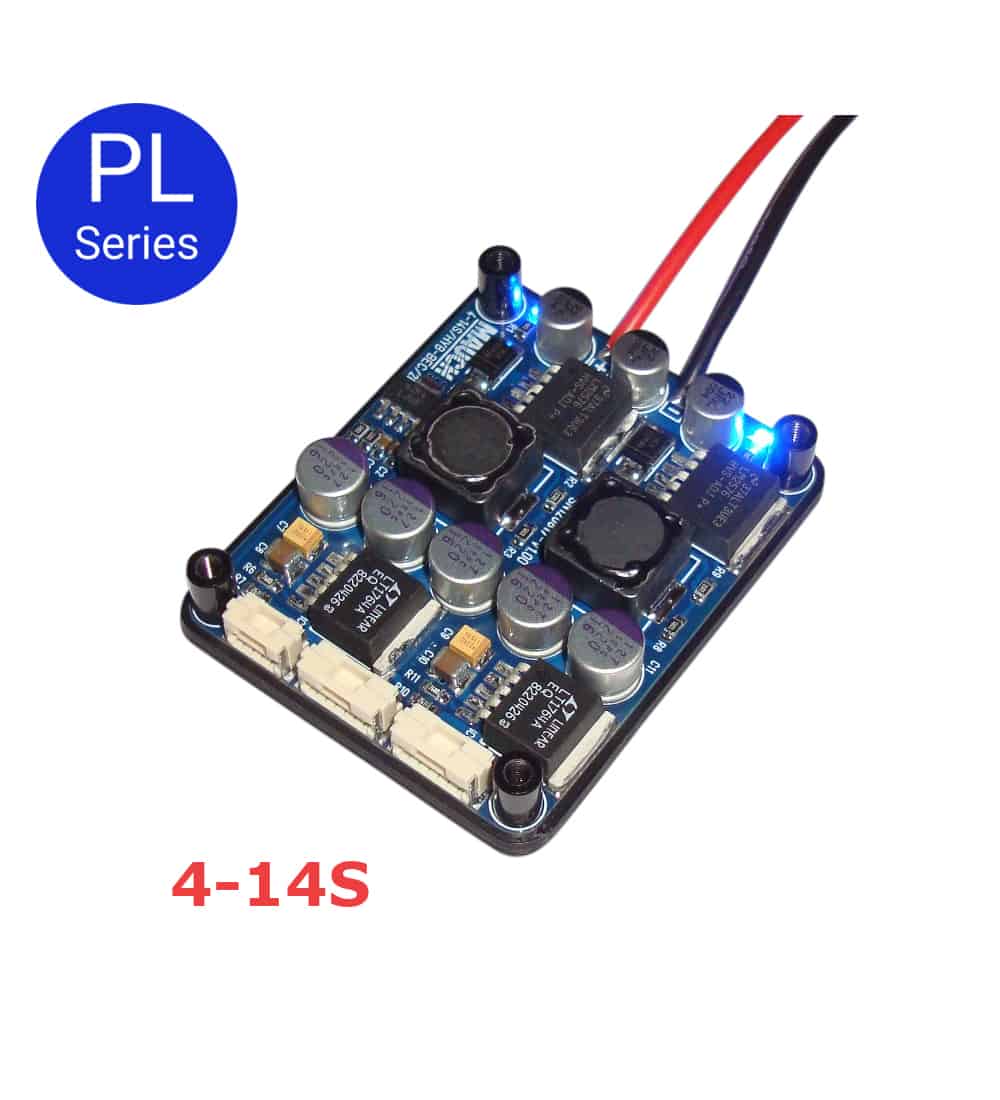

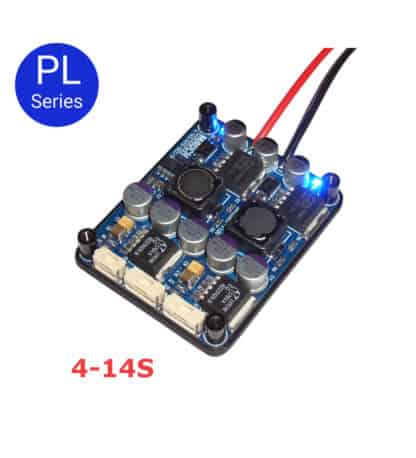

Mauch 022: PL 4-14S HYB-BEC / 2x 5.3V @ 3A

Input: 4-14S LiPo (60V max)
Outputs: 2×5.30V @ 3A (+/- 0.05V –> Ripple 1mV @ 1.5A)

Includes an LDO power supply (+5.00V +/- 0.03V) for the PL sensor board or Sensor Hub X2, input polarity protection, blue power on LED, as well as TDK input and output capacitors to prevent burn out of the UBEC from voltage spikes.

What’s included:

• 1x 4-14S HYB-BEC with CFK enclosure
• 1x 040: sensor cable
  Molex CLIK-Mate 4p on both ends / L = 150mm
• 1x 050: backup power cable for Pixhawk 2.1
  Molex CLIK-Mate 1.25mm 6p to Molex CLIK-Mate 2.0 6p / L = 150mm

Does not include flight controller cable
One of the following cables must be purchased separately:

• 041: Power cable for Pixhawk 1
• 042: Power cable for Pixhawk 2.1
• 043: Power cable for Pixhawk 3 / Pixhawk 4 / PixRacer

Dimensions and weight:

• 59mm x 48mm x 13mm / 41g with enclosure

Please review the Mauch warranty for returns and replacements.
