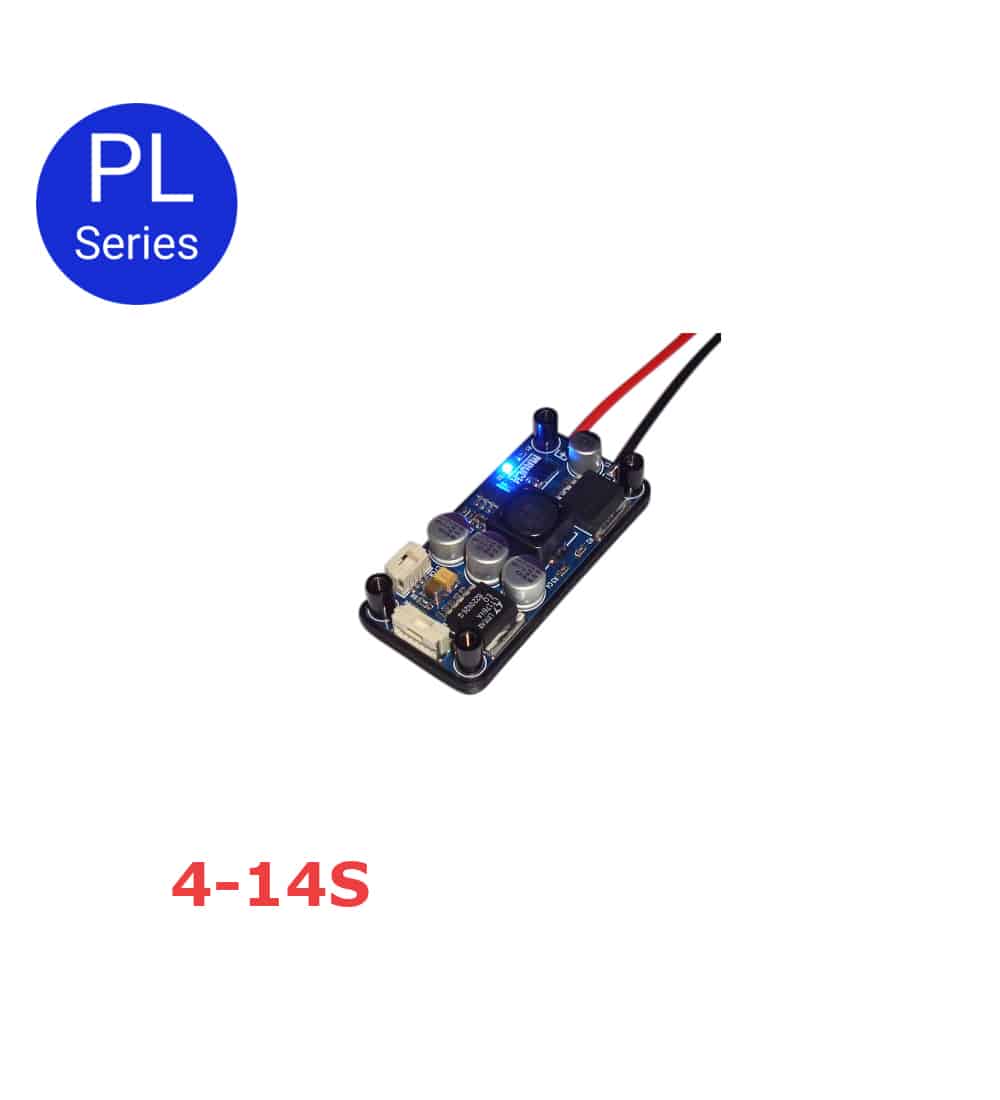

Mauch 021: PL 4-14S HYB-BEC / 1x 5.3V @ 3A

$57.92

Input: 4-14S LiPo (60V max)
Output: 1x 5.3V @ 3A (+/- 0.05V –> Ripple 1mV at 1.5A)

Includes an LDO power supply (+5.00V +/- 0.03V) for the PL sensor board or Sensor Hub X2, input polarity protection, blue power on LED, as well as TDK input and output capacitors to prevent burn out of the UBEC from voltage spikes.

What’s included:

  • 1x 4-14S BEC with CFK enclosure
  • 1x 040: sensor cable
    Molex CLIK-Mate 1.25mm 4p on both ends / L = 150mm

Does not include flight controller cable
One of the following cables must be purchased separately:

Dimensions and weight:

  • 59 x 29 x 13mm / 26g with CFK enclosure
Please review the Mauch warranty for returns and replacements.

In stock

Quantity

Additional information

Weight 1.1 oz
Dimensions 2.5 × 2.5 × 0.75 in
