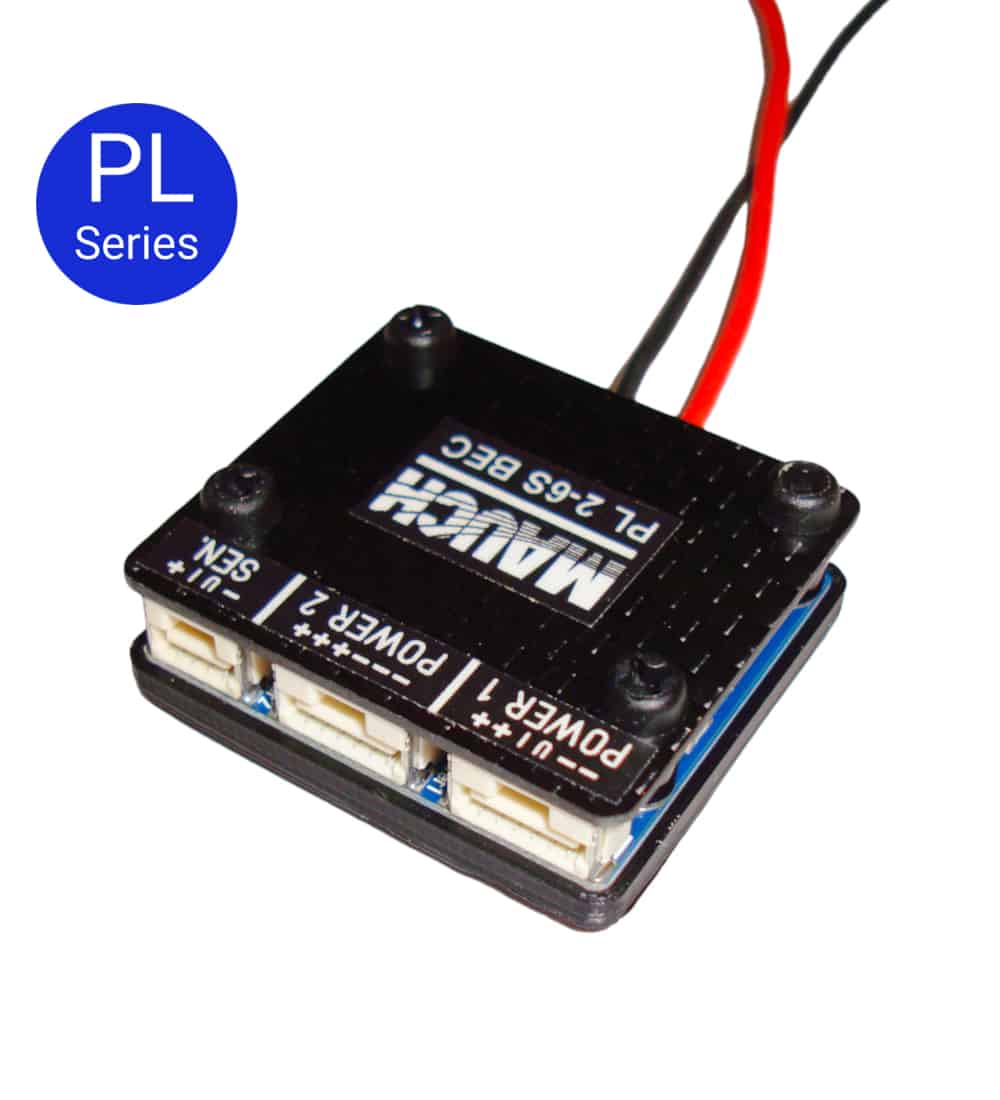

Mauch 016: PL 2-6S BEC / 2x 5.35V @ 3A

$51.73

Input: 2-6S LiPo (28V max)
Outputs: 2x 5.35V @ 3A (+/- 0.05V –> Ripple 10mV (0.2%) at 1.5A)

Includes an LDO power supply (+5.00V +/- 0.03V) for the PL sensor board or Sensor Hub X2, input polarity protection, blue power on LED, as well as TDK input and output capacitors to prevent burn out of the UBEC from voltage spikes.

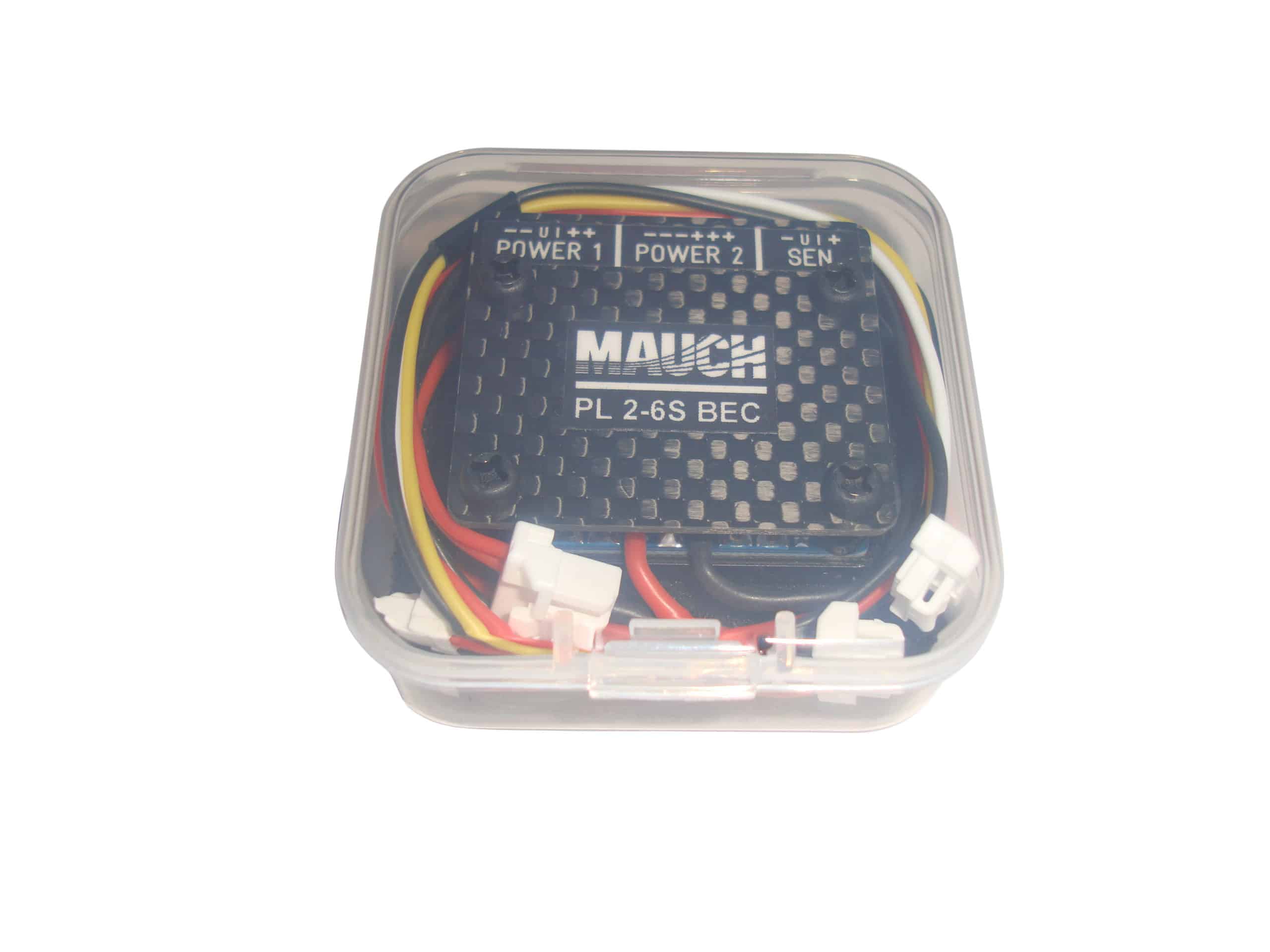

What’s included:

  • 1x 2-6S BEC with CFK enclosure
  • 1x 040: sensor cable
    Molex CLIK-Mate 1.25mm 4p on both ends / L = 150mm
  • 1x 050: backup power cable for Pixhawk 2.1
    Molex CLIK-Mate 1.25mm 6p to Molex CLIK-Mate 2.0mm 6p / L = 150mm

Does not include flight controller cable
One of the following cables must be purchased separately:

Dimensions and weight:

  • 32 x 36 x 7mm / 11g without CFK enclosure
  • 34 x 38 x 10mm / 16g with CFK enclosure
Please review the Mauch warranty for returns and replacements.

In stock

Quantity

Additional information

Weight 1.2 oz
Dimensions 2.25 × 2.25 × 0.75 in
