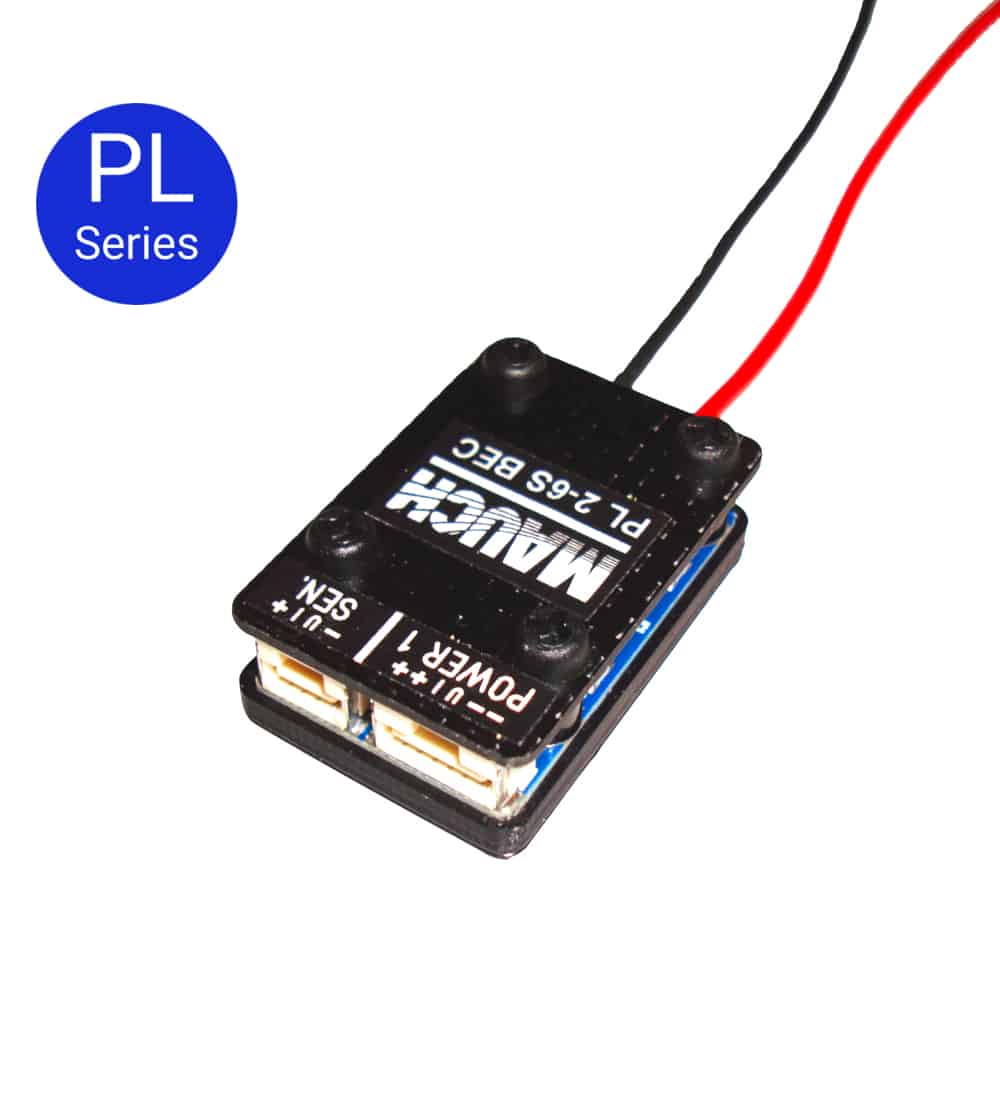

Mauch 015: PL 2-6S BEC / 1x 5.35V @ 3A

Input: 2-6S LiPo (28V max)
Output: 1x 5.35V @ 3A ( +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A)

Includes an LDO power supply (+5.00V +/- 0.03V) for the PL sensor board or Sensor Hub X2, input polarity protection, blue power on LED, as well as TDK input and output capacitors to prevent burn out of the UBEC from voltage spikes.

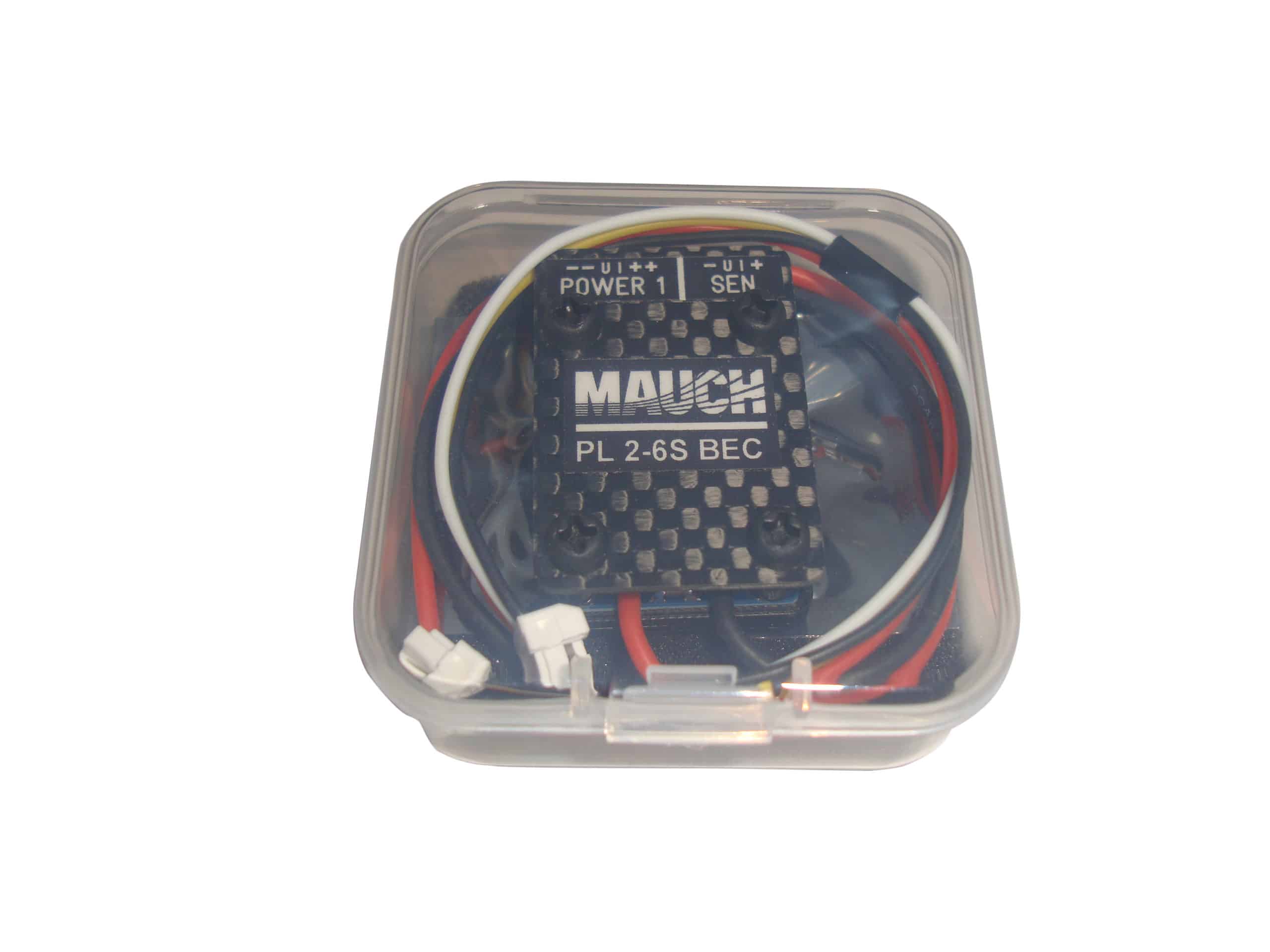

What’s included:

• 1x 2-6S BEC with CFK enclosure
• 1x 040: sensor cable
  Molex CLIK-Mate 4p on both ends / L = 150mm

Does not include flight controller cable
One of the following cables must be purchased separately:

• 041: Power cable for Pixhawk 1
• 042: Power cable for Pixhawk 2.1
• 043: Power cable for Pixhawk 3 / Pixhawk 4 / PixRacer

Dimensions and weight:

• 34 x 22 x 7mm / 7g without CFK enclosure
• 36 x 24 x 10mm / 12g with CFK enclosure

Please review the Mauch warranty for returns and replacements.
