Mauch 013: PC/PL Sensor Hub X8 – for up to 8 batteries


Collects the current measurements of up to eight Sensor Boards. All Sensor Boards must have the same current rating. The current measurements are summed up and passed to the ArduPilot compatible flight controller. The voltage of the LiPo packs is measured through Sensor Board 1.

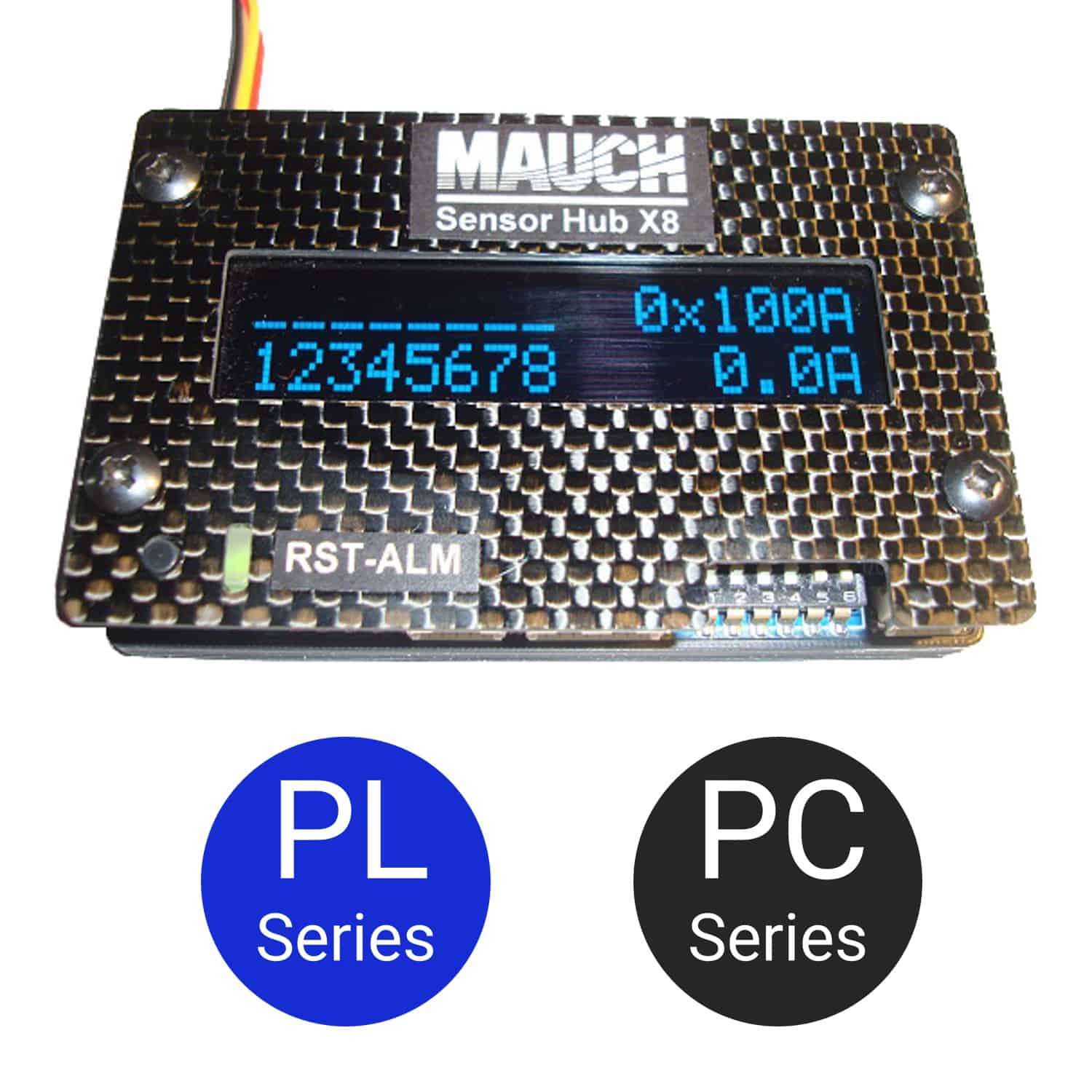

An OLED display indicates the number of current sensors, and whether each current is within range of the average current of all monitored batteries.

What's included:

  • 1x Sensor Hub X8 with CFK enclosure
  • 1x special connection cable with voltage sense wire
    Molex CLIK-Mate 1.25mm 3p+4p / L = 200mm
  • 7x 040: Sensor cable
    Molex CLIK-Mate 1.25mm 4p on both ends / L = 200mm
  • 1x alarm output and external reset cable
    Molex CLIK-Mate 1.25mm 5p / L = 200mm
Please review the Mauch warranty for returns and replacements.

In stock


Additional information

Weight 4.2 oz
Dimensions 4.75 × 3 × 1.5 in
