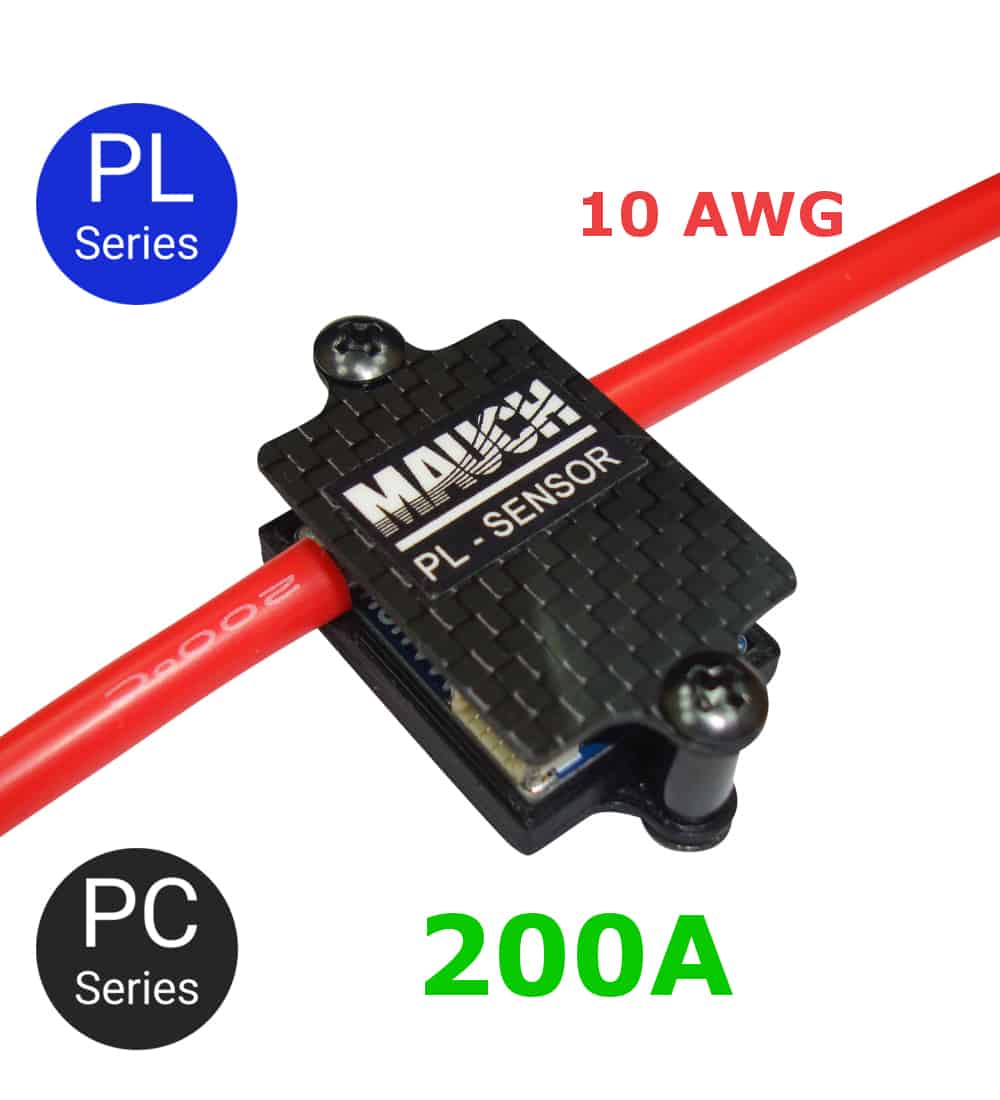

Mauch 003: PL-200 Current and Voltage Sensor Board 200A

$45.05

Measures currents up to 200A and voltages up to 14S (max. 60V) with solder bridge open and up to 7S (max. 30V) with solder bridge closed

What’s included:

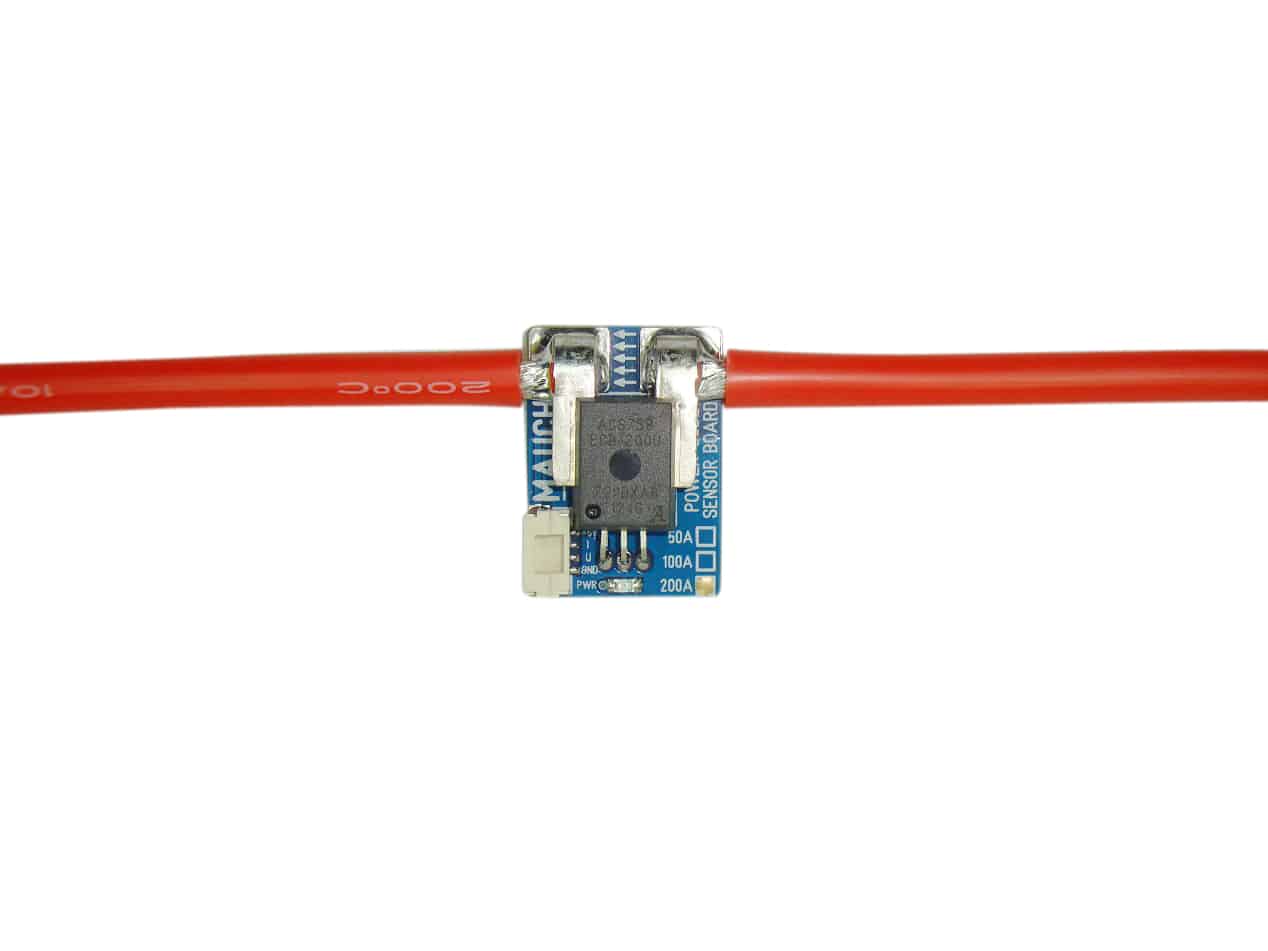

  • 1x 200A current and voltage measurement sensor, based on Allegro Hall Sensor ACS758-200U, 2x 10cm 10AWG wires (red), Molex CLIK-Mate 1.25mm 4p connector

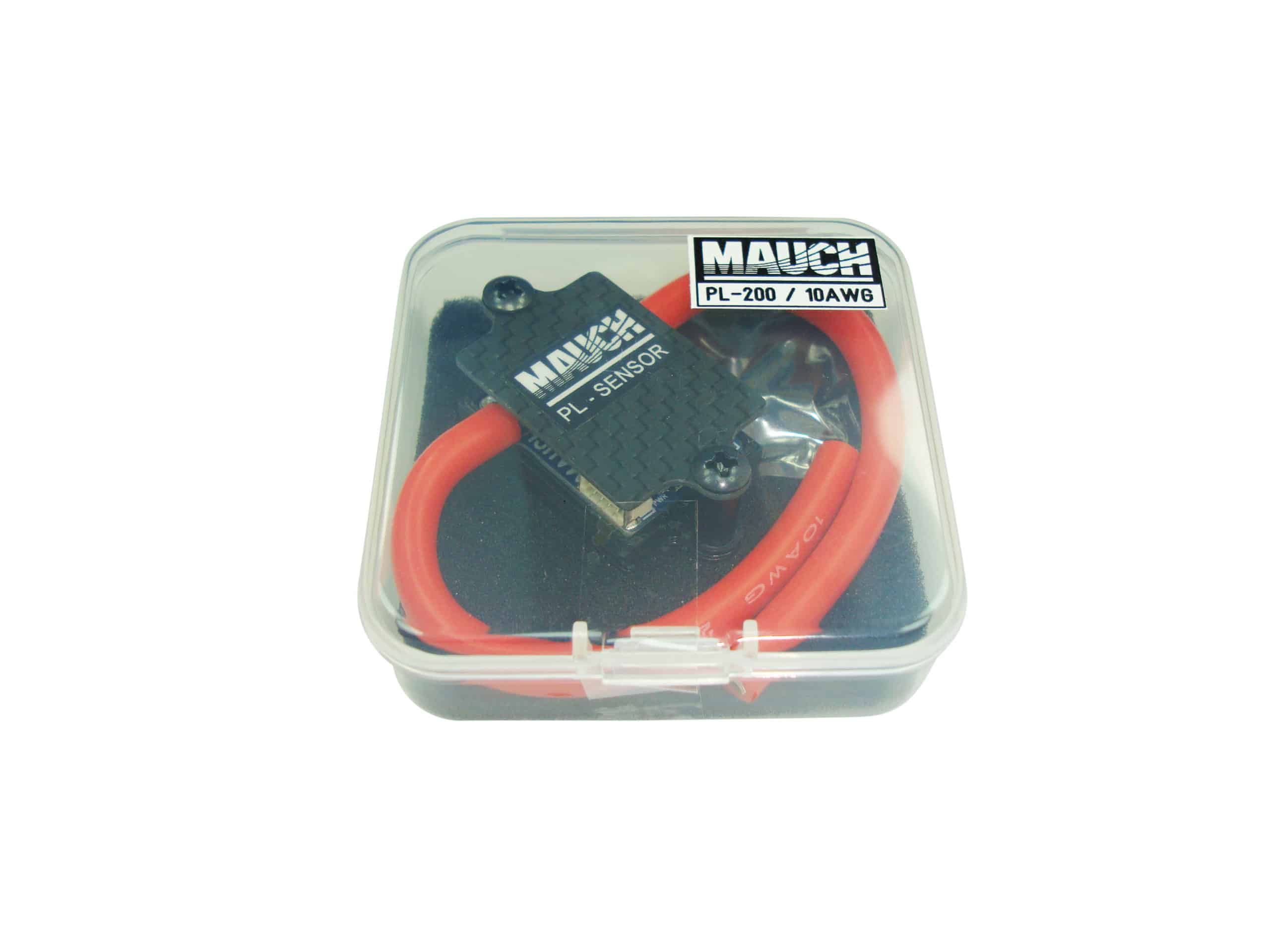

  • 1x CFK enclosure

Does not include sensor cable (sensor cable supplied with the BEC)
If you want to use your own BEC (4.95-5.05V), also order a 040: Sensor cable

Dimensions and weight:

  • 27.5 x 19.5 x 10.5mm / 22g without enclosure
  • 43.5 x 23.0 x 15mm / 27g with enclosure
Please review the Mauch warranty for returns and replacements.

In stock

Quantity

Additional information

Weight 1.5 oz
Dimensions 2.5 × 2.5 × 0.75 in
