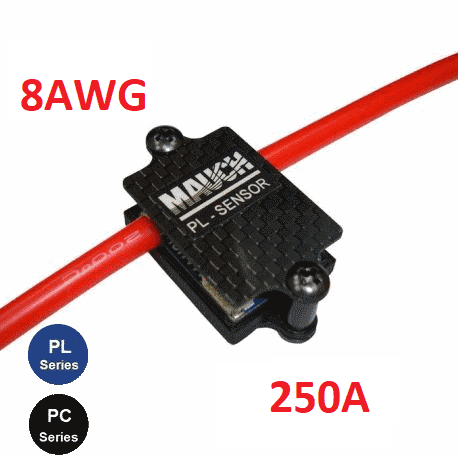

Mauch 005: PL-250 Current and Voltage Sensor Board 250A


Measures currents up to 250A and voltages up to 14S (max. 60V) with solder bridge open and up to 7S (max. 30V) with solder bridge closed.

What’s included:

  • 1x 250A current and voltage measurement sensor, based on Allegro Hall Sensor ACS770-250U, 2x 15cm 8AWG wires (red), Molex CLIK-Mate 1.25mm 4p connector
  • 1x CFK enclosure

Does not include sensor cable (sensor cable supplied with the BEC)
If you want to use your own BEC (4.95-5.05V), also order a 040: Sensor cable

Dimensions and weight:

  • 27.5 x 19.5 x 10.5mm / 39g without enclosure
  • 43.5 x 23.0 x 15mm / 44g with enclosure
Please review the Mauch warranty for returns and replacements.

In stock


Additional information

Weight 2 oz
Dimensions 3.5 × 2.5 × 0.75 in
