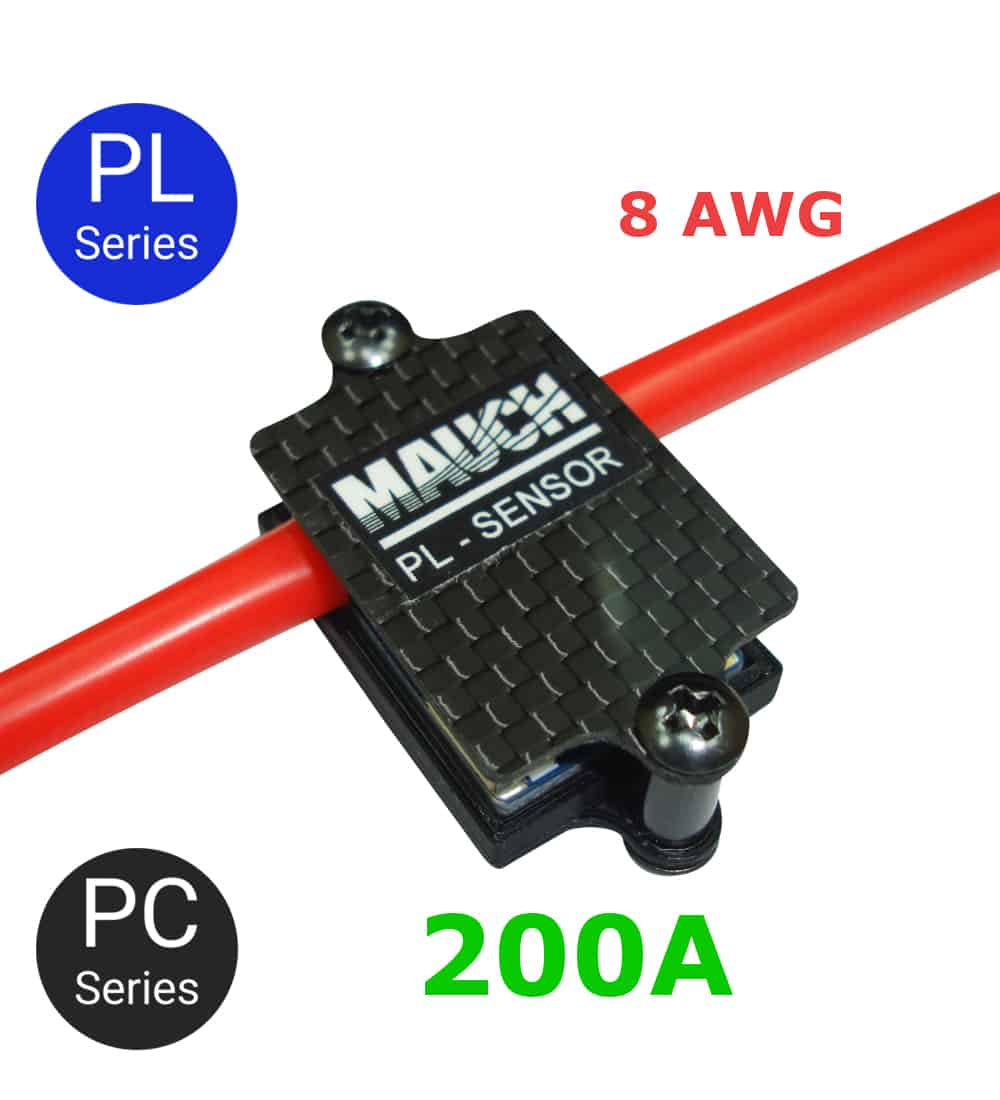

Mauch 004: PL-200/8 Current and Voltage Sensor Board 200A 8AWG


Measures currents up to 200A and voltages up to 14S (max. 60V) with solder bridge open and up to 7S (max. 30V) with solder bridge closed

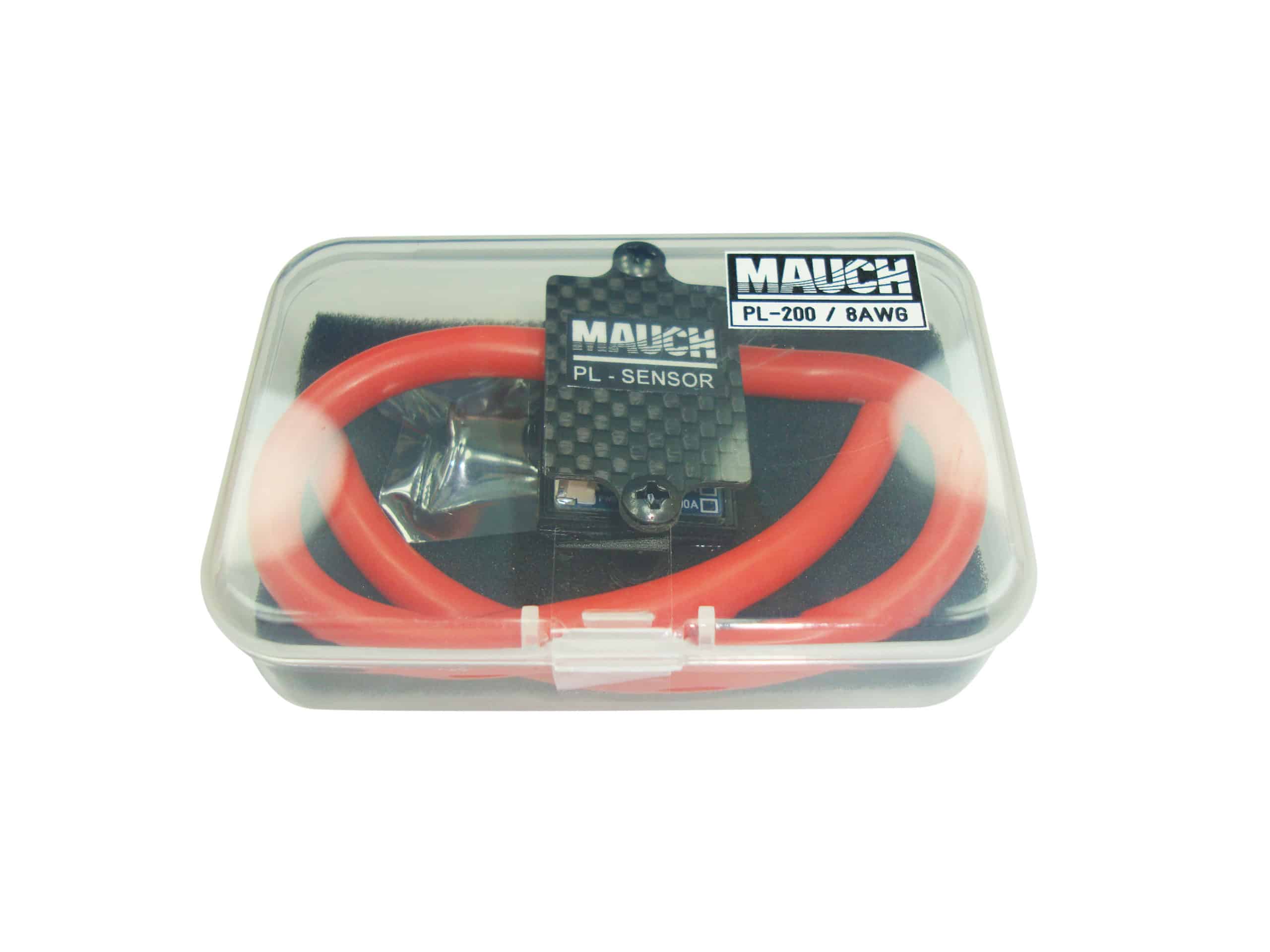

What’s included:

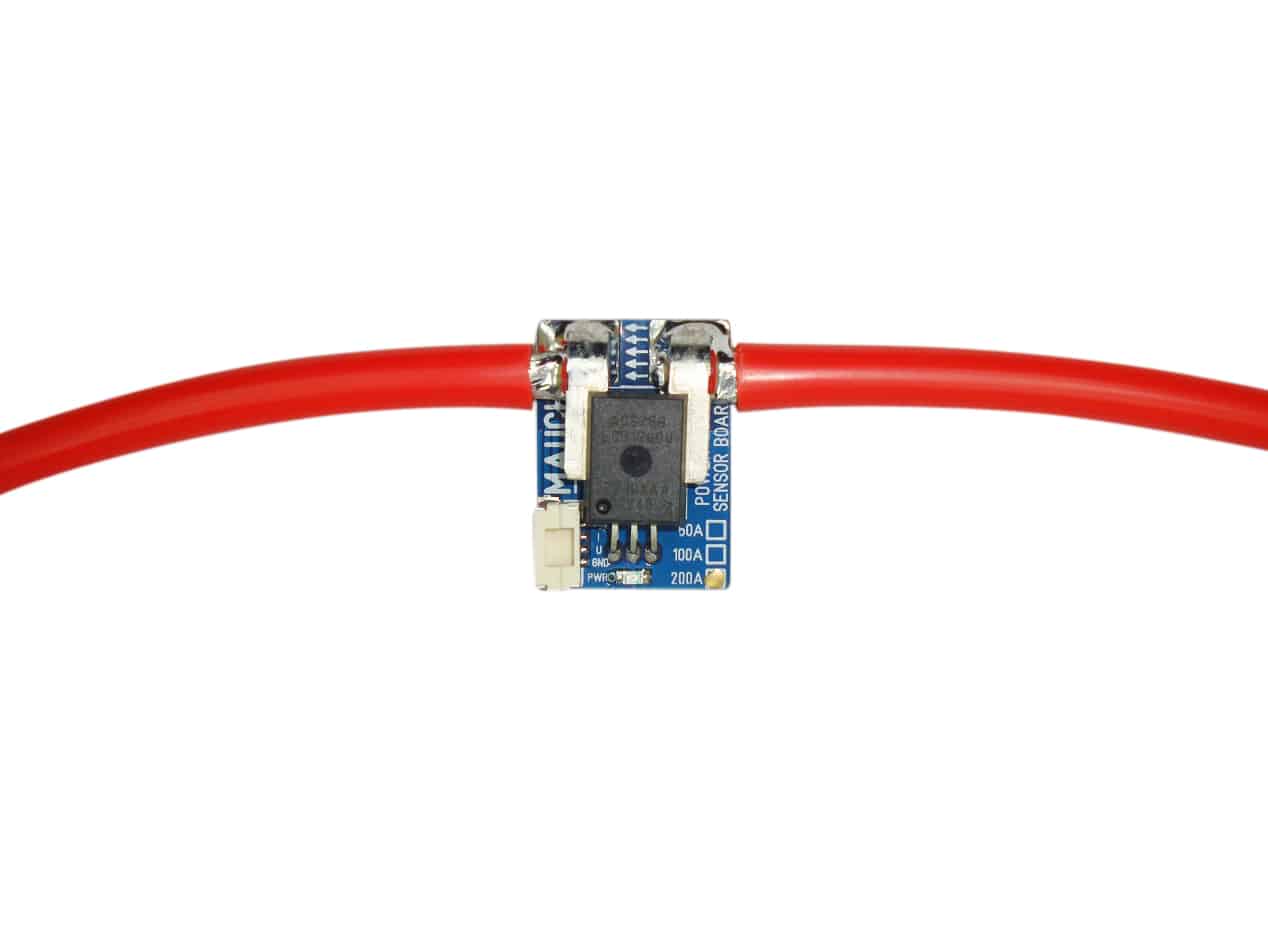

  • 1x 200A current and voltage measurement sensor, based on Allegro Hall Sensor ACS758-200U, 2x 15cm 8AWG wires (red), Molex CLIK-Mate 1.25mm 4p connector
  • 1x CFK enclosure

Does not include sensor cable (sensor cable supplied with the BEC)
If you want to use your own BEC (4.95-5.05V), also order a 040: Sensor cable

Dimensions and weight:

  • 27.5 x 19.5 x 10.5mm / 39g without enclosure
  • 43.5 x 23.0 x 15mm / 44g with enclosure
Please review the Mauch warranty for returns and replacements.

In stock


Additional information

Weight 2 oz
Dimensions 3.5 × 2.5 × 0.75 in
