Mauch 002: PL-100 Current and Voltage Sensor Board 100A

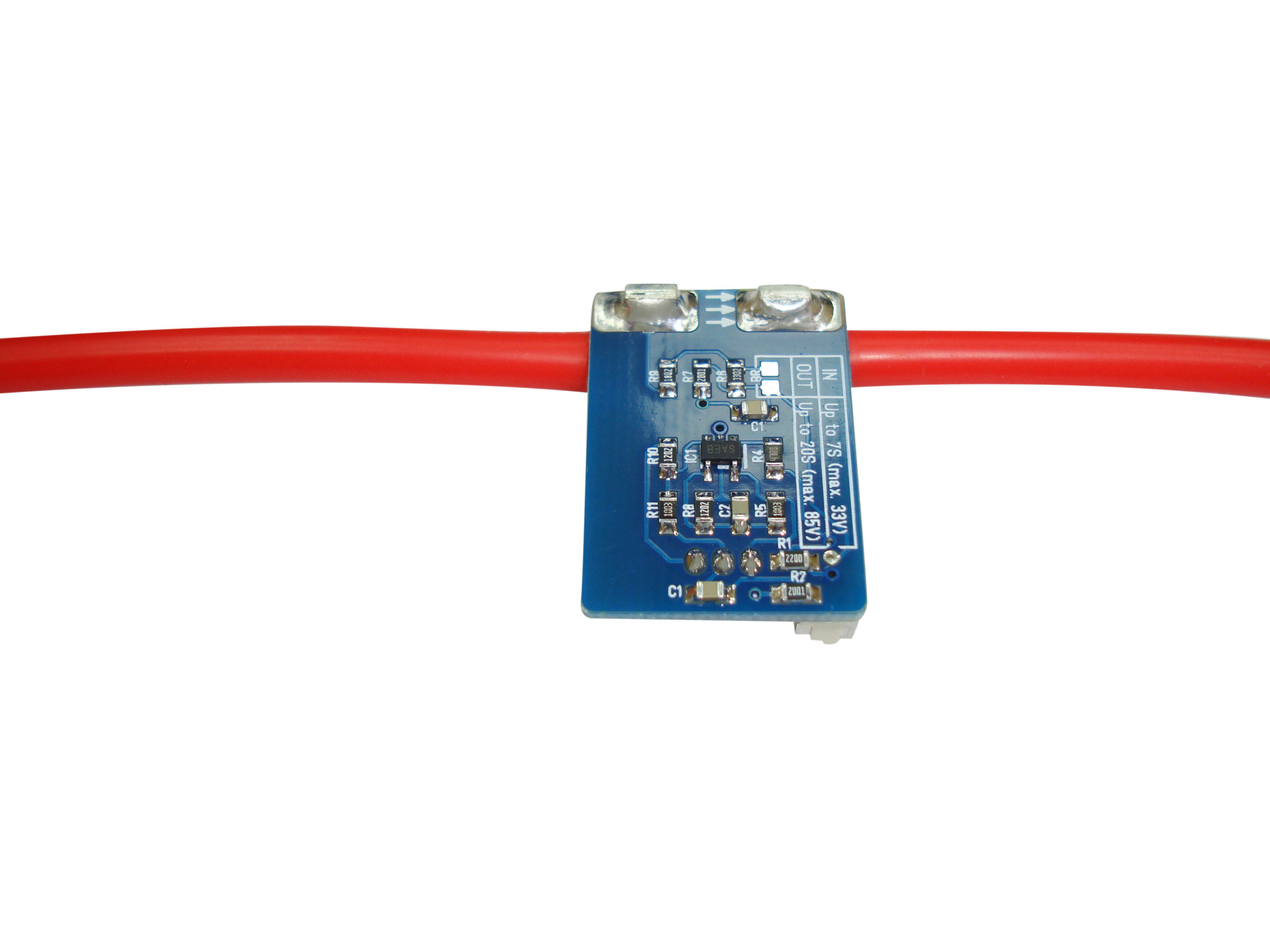

Measures currents up to 100A and voltages up to 14S (max. 60V) with solder bridge open and up to 7S (max. 30V) with solder bridge closed

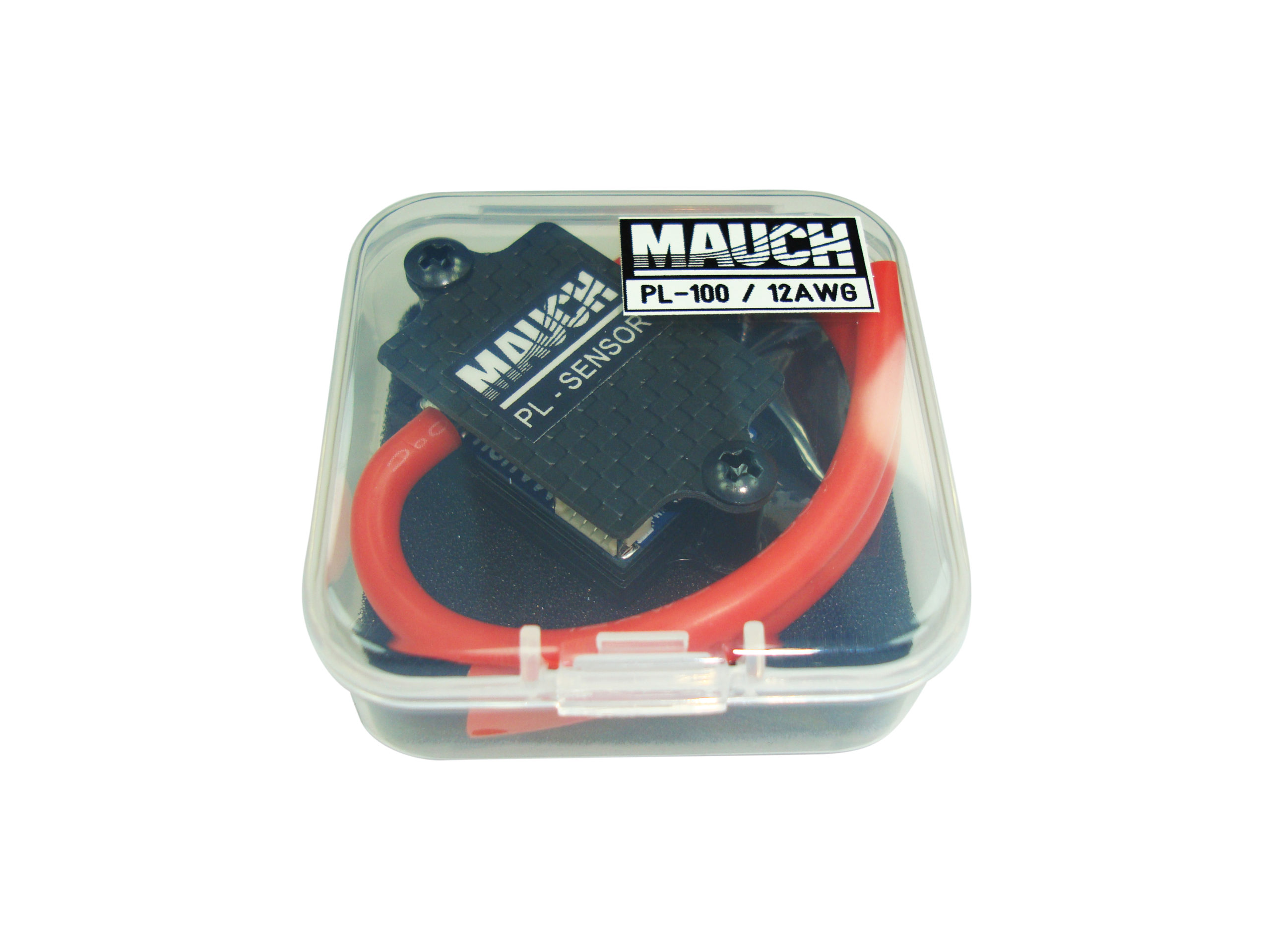

What’s included:

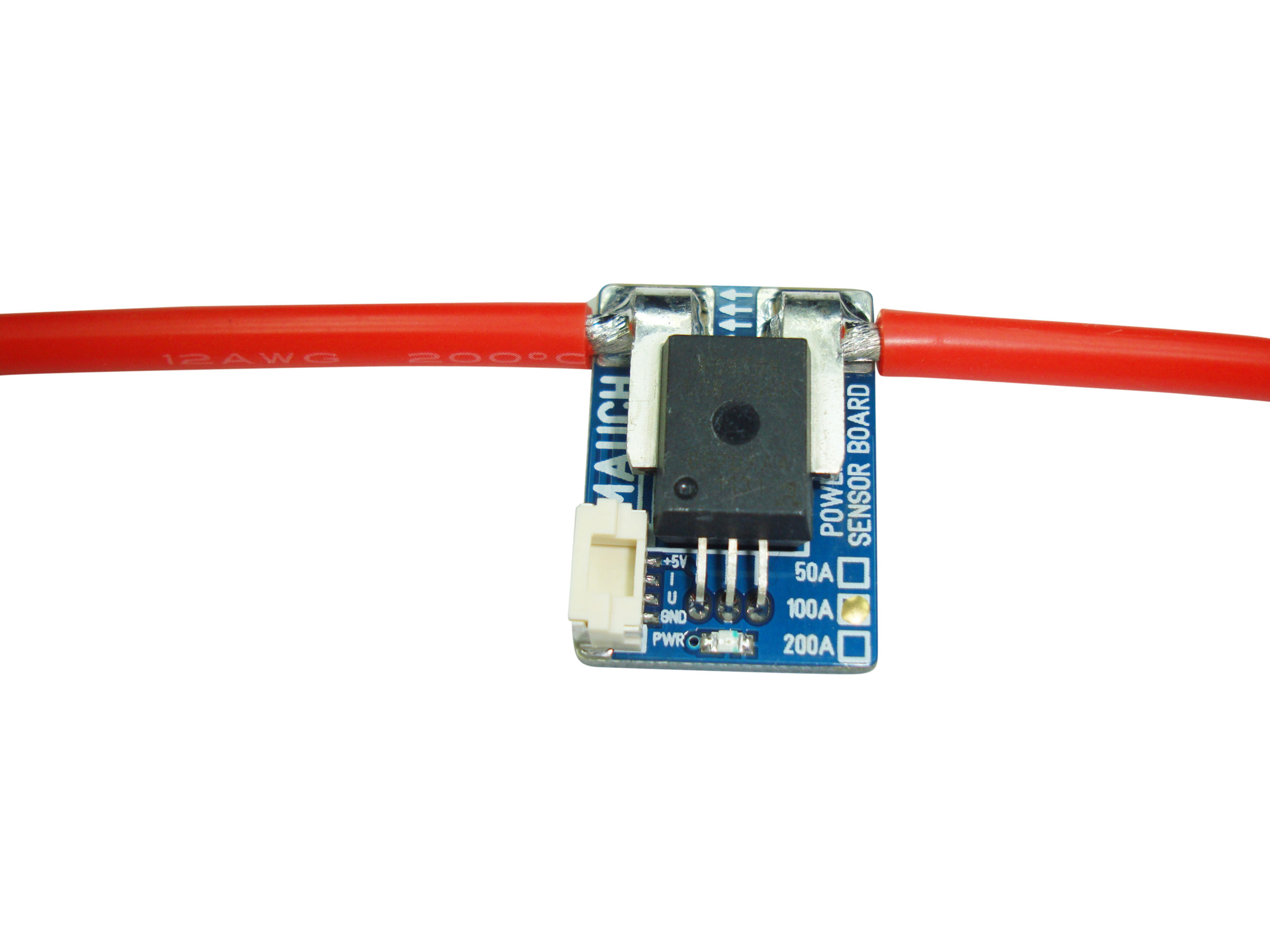

  • 1x 100A current and voltage measurement sensor, based on Allegro Hall Sensor ACS758-100U, 2x 10cm 12AWG wires (red), Molex CLIK-Mate 1.25mm 4p connector

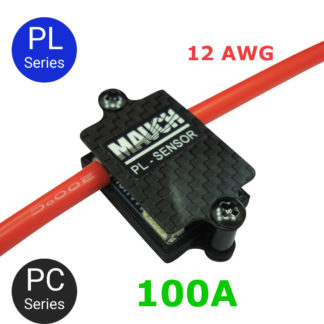

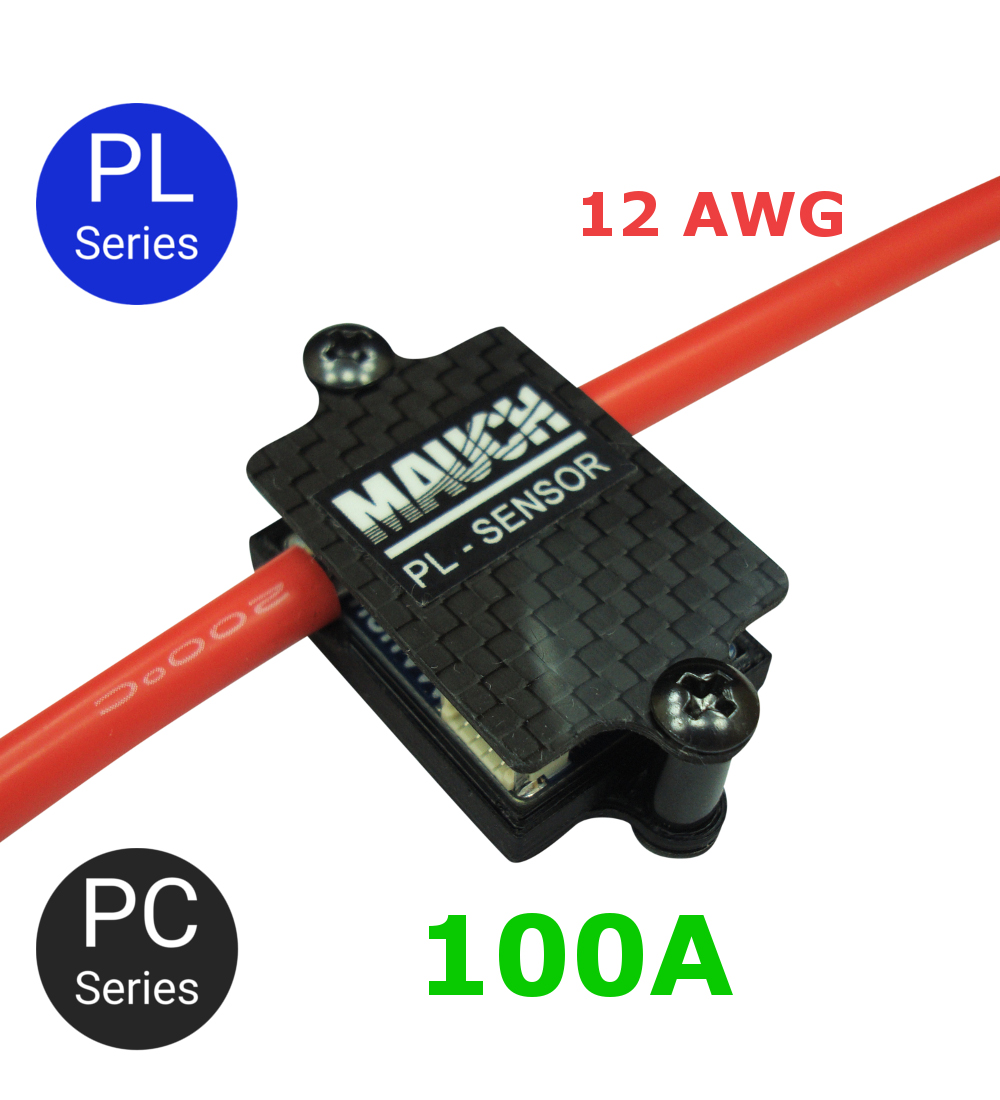

  • 1x CFK enclosure

Does not include sensor cable (sensor cable supplied with the BEC)
If you want to use your own BEC (4.95-5.05V), also order a 040: Sensor cable

Dimensions and weight:

  • 27.5 x 19.5 x 10.5mm / 17g without enclosure
  • 43.5 x 23.0 x 15mm / 22g with enclosure
Please review the Mauch warranty for returns and replacements.

In stock


Additional information

Weight 1.2 oz
Dimensions 2.25 × 2.25 × 0.75 in
